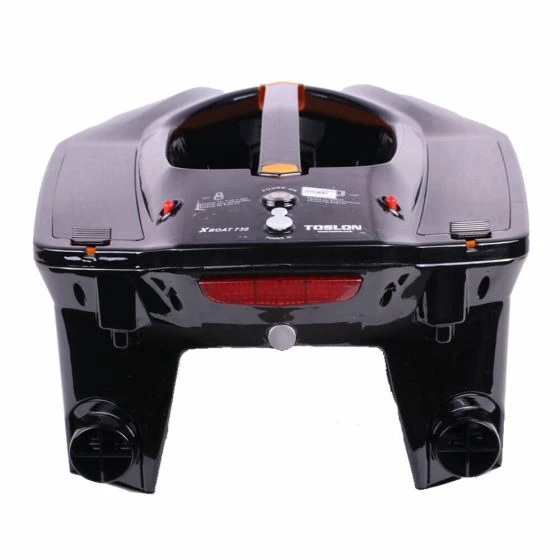

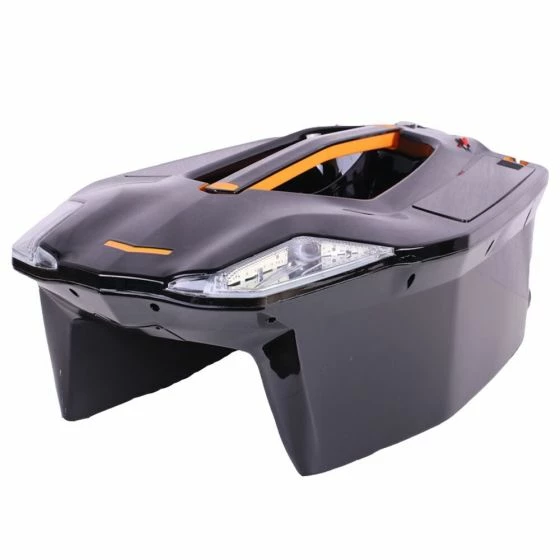

Toslon – X Boat With X Pilot And TF640

2.4 GHz 6-channel remote control

Up to 5kg bait capacity / Volume total 5 Liter ( 2.5 liters per hopper )

Standard 2 Li-ion battery (12000 mah /12v) provide more than 6.5hours running time at max speed

Total weight 7.0kg (with batteries)

R/C Range 500m to 1000m, depending upon environmental conditions

Dimenslons 70cm*44cm*27cm

Weed protection on props

Failsafe-system as standard

Two separately controllable hopper release

Non-wearing and easy-to-use magnetic pin hook releasing system

High performance industrial engines

SONAR/GPS/Autopilot pre-designed. Easy Plug and Play without damaging the body

State of the art elctronic control system provide complete reliability even under the toughest conditions

Special handle design with rubber protection providing comforatble grabing

Unique shape design make the boat appearance attractive and remarkable

KEY FEATURES

SPECS

Navigation Sonar system TF640 was specially designed for all kinds of bait boats. It was combined with high Position accuracy GPS, digital wireless sonar and electronic compass. The GPS system let you guiding the boat to any waypoint you saved. The advanced sonar feature show you actual bottom condition and fish, and the electronic compass indicate the instant boat heading direction on screen which make it possible to operate the boat under bad condition, such as night, heave fog, etc. GPS Position Accuracy: 1m(filed test); RC Distance:300m; 500 Waypoint; Digital Wireless Sonar with 80ft depth range; Sonar frequency 455kHz; 4.3″ TFT with resolution 480*272Pixels; 65,536 color;

KEY FEATURES

GPS and Compass

GPS data display show: Distance to target, Distance to Home,Speed of boat,Time to Board,Satellite Number,Heading,Bear, Course Memory,Time of day,Main Battery.

Compass indicator of the instant boat heading direction on screen (a red “+” on screen indicate the target)

Indicator of the position and distance to target waypoint and HOME

Boat arriving alarm

Signal lost alarming

Indication of satellite condition by color bar: red(0~satellites); Yellow(3~6); Blue(?6)

Show the current position as latitude/longitude in decimal degrees

20 RF channels allow different users operation at same region without interference

Detailed waypoint information including icon, name, date, etc

Zoom in/Out route display

Sonar

Adopt brand new digital wireless sonar system

Real time sonar windows display the latest sonar returns

Color Line separates fish and structure from the bottom, and defines bottom hardness.

Display target depth reading above each fish symbol as a guide for quick and precise lure presentations.

Sonar alarm: fish / shallow / low battery(boat battery and display battery)

As an autopilot system, TOSLON X-Pilot (TC106) can work with most bait boats. It support: 2 Engines / 1 Engine with Rudder / XBoat and using one button to start the auto-pilot mode. [Wiring Test] Menu help you check & correct connection quickly.

KEY FEATURES

1.Boats support: 2 Engines / 1 Engine with Rudder / XBoat

2.Easy Operation: one button to start the auto-pilot mode

3.Easy Connection: [Wiring Test] Menu help you check & correct connection quickly

4. Radio Power: 100mW (max operating range: 800ft)

5. Storage: Micro-SD support, Max 500 fishing spots, and upgrade software by SD simplely

6.Quickly saving / loading waypoints (and HOME point)

7.Automatically steer straight ahead

8.Quickly fixed to remote with special metal bracket
